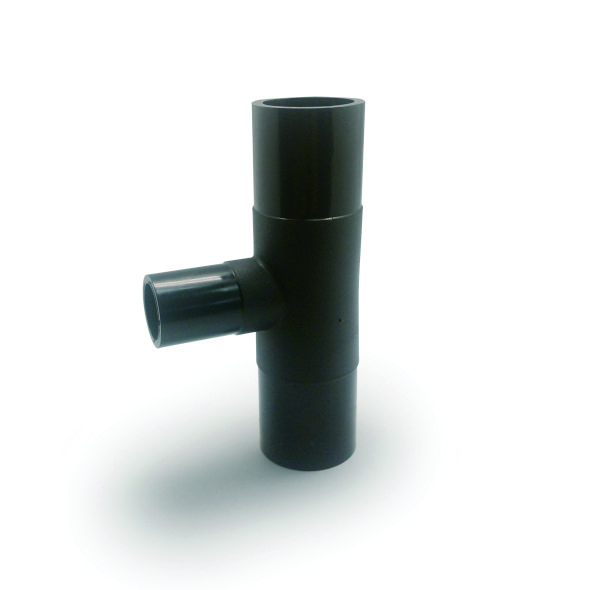

PE (polyethylene) is one of the most basic plastic. Due to its high strength, high temperature resistant, anti-corrosion, non-toxic, wear resistance and other characteristics, PE material is widely used in water supply and drainage manufacturing. According to the wall thickness, it can be divided into SDR11 and SDR17.6 series. Compared with steel pipe, PE pipe construction process is simpler and has certain flexibility. More importantly, it will save a lot of processes by leaving out the antiseptic treatment.
Return| specifications | D | d | I | D1 | d1 | l1 | L | H | A/box |
| Φ75x50 | 75 | 50 | 82 | 50 | 40 | 69 | 242 | 161 | |
| Φ75x63 | 75 | 63 | 70 | 63 | 50 | 63 | 260 | 123 | 29 |
| Φ90x50 | 90 | 50 | 79 | 50 | 39 | 55 | 293 | 122.5 | 22 |
| Φ90x63 | 90 | 63 | 79 | 63 | 50 | 63 | 293 | 130.5 | 22 |
| Φ90x75 | 90 | 75 | 79 | 75 | 61.4 | 70 | 293 | 137.5 | 18 |
| Φ110x50 | 110 | 50 | 83 | 50 | 38 | 57 | 324 | 191 | |
| Φ110x63 | 110 | 63 | 82 | 63 | 50 | 63 | 324 | 143 | 21 |
| Φ110x75 | 110 | 75 | 82 | 75 | 61.4 | 75 | 324 | 150 | 17 |
| Φ110x90 | 110 | 90 | 82 | 90 | 73.6 | 79 | 324 | 159 | 12 |
| Φ160x63 | 160 | 63 | 98 | 63 | 50 | 63 | 411 | 170.5 | |
| Φ160x75 | 160 | 75 | 96.5 | 75 | 60 | 71.5 | 406 | 254.5 | |
| Φ160x90 | 160 | 90 | 98 | 90 | 73.6 | 79 | 411 | 186.5 | |
| Φ160x110 | 160 | 110 | 98 | 110 | 90 | 82 | 411 | 189.5 | |
| Φ200x90 | 200 | 90 | 112 | 90 | 72 | 83.5 | 479 | 304 | |
| Φ200x110 | 200 | 110 | 112 | 110 | 90 | 82 | 484 | 212 | |
| Φ200x160 | 200 | 160 | 112 | 160 | 130.8 | 98 | 484 | 228 |
| The following specifications need to be booked | 元/個 |
Φ75x32 Φ110x40 | 30.50 105.00 |
